Facts About EtO

There are many misconceptions surrounding Ethylene Oxide... This section presents some facts and figures to dispel the most common myths.

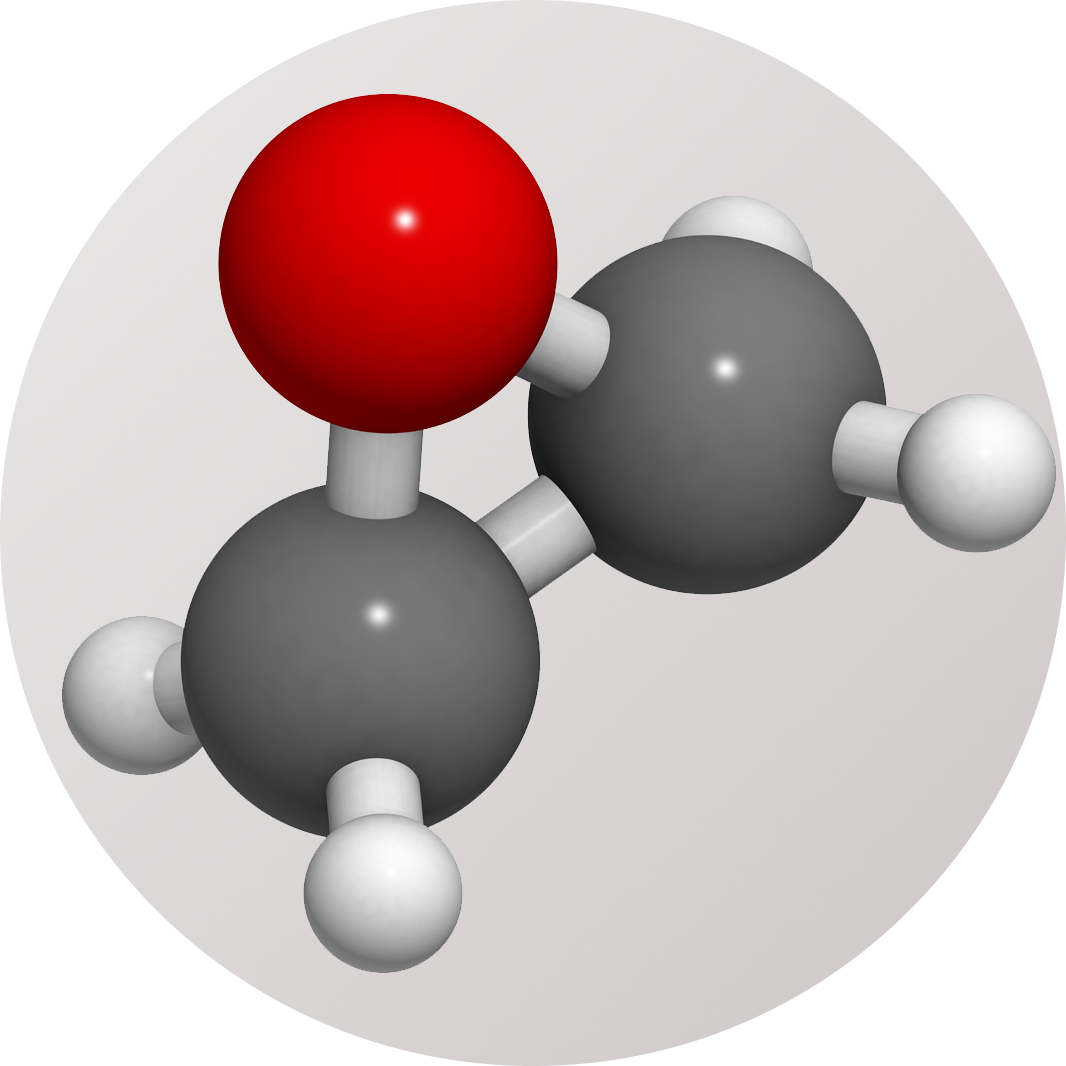

A small reactive molecule

Ethylene Oxide is a small, reactive molecule (C2H4O) consisting of a cyclical ether ring and four hydrogen atoms. It boils at 10.5 °C and is a colourless, flammable gas with a sweet, typical ether-like smell. It sterilises by alkylating organic molecules in the pathogen. This mode of action makes it inappropriate for sterilising drugs. EtO is generally used for sterilisation at around 50 °C, but remains an effective sterilant down to around 20 °C.

Safe for the environment

EtO is not covered by any of the international treaties on release of chemicals into the environment. It is not a CFC (Chlorofluorocarbons) and as such is not covered by the Montreal protocol on Substances that Deplete the Ozone layer. It is not a VOC (Geneva protocol). It is not a greenhouse gas (Kyoto protocol). Nor is it covered by the European Pollution, Prevention and Control regulations. Even in the USA there are no restrictions covering emissions up to 1 tonne per year. The very small quantities used in Andersen cabinets may be released directly into the atmosphere, where it reacts with water and organic material in a completely biodegradable way.

The 14th most manufactured chemical in the world

Some 99% of the ethylene oxide used in the world is used in industrial synthesis of other chemicals. Around 20 million tonnes of EtO are manufactured each year, making it the 14th most manufactured chemical in the world (Ethylene is top at around 120 million tonnes per year). EtO is used in the manufacture of anti-freeze, polyester and PET. It is converted almost exclusively to ethylene glycol, which may be used in its own right as an anti-freeze or used as an ingredient in the manufacture of various polymers. The two highest volume polymers using ethylene glycol in their manufacture are Polyester (fabrics) and PET (containers).

70% of single use devices are sterilised with EtO

EtO was first use in the early 20th century for the sterilisation of spices. Its use as a sterilant for medical devices really took off in the 1950’s with the increasing use of plastics in their construction. Today EtO continues to be the dominant technology, worldwide, for the terminal sterilisation of single use medical devices. Around 70% of single use medical devices are sterilised with EtO, and these packages bear the words Sterile EO on the back. The remaining devices are sterilised by irradiation (either Gamma or E-Beam). 70% of single use devices are sterilised with EtO.

EtO is also widely used to re-sterilise medical devices. It is uniquely good at sterilising complex shapes due to its mobility and ability to diffuse through plastics. It is also very gentle, in contrast to oxidising sterilising agents such as H2O2, causing no detectable damage to the rubber, sealants, electronics, and optics used in complex modern devices.

A toxic gas subject to Workplace Exposure Limits

EtO is a toxic gas and there are workplace exposure limits (WELs) which are set country by country. Uniquely, in the Andersen system the chamber is held within a negative pressure cabinet to prevent operator exposure. EtO is the least toxic of the generally used chemical sterilants. For example

EtO H2O2
UK WEL 5 ppm 1 ppm
USA IDLH* 800 ppm 75 ppm

NIOSH (National Institute of Occupational Safety and Health) in the USA conducted a study over fourty years (Steenland et al, New England Journal of Medicine, 1991). They studied 18,235 men and women who had worked at 14 plants (belonging to 10 different companies).

"NIOSH stydy found that workers exposed to EtO had a lower incidence of cancer than the general population."

These workers had been exposed to ten’s of ppm EtO, for the duration of every working day. The incidence of cancer in the study population was LOWER than in the general population! There was a trend of increasing incidence of cancer with those exposed for longer periods, with those exposed for the longest having the same incidence of cancer as those exposed for over 20 years.
